Product Description:
Sintering furnace is a batch-type of induction heating furnace, mainly used in the sintering of hard alloy and powder metallurgy industry producing size of silicon carbide powder, silicon carbide seal ceramic sintering, pressureless sintering of silicon carbide and titanium carbide powder and vanadium carbide powder and metal powder and composite metal powders.Much easier and more convenient operation which names automatically furnace door open through touch screen operated
Features:
- Powder metallurgy silicon carbide sintering furnace
- Fully automated silicon carbide sintering furnace
- Silicon carbide vacuum sintering furnace
- Product Name: Silicon Carbide Furnace
- Forming Agent: PEG, Paraffin, Rubber
- Gas Outlet: One Gas Outlet With Pressure Gauge
- Furnace Structure: Double Layer Steel Casing With Air Cooling System
- Cooling Time: 0.3-12h
- Temperature Range: Up To 100°C
Technical Parameters:
Technology parameter:
| Model | RDE-336-N | RDE-336-N | RDE-336-N | RDE-336-N |
| Working size | 300*300*1200 | 400*400*1200 | 500*500*1200 | 500*500*1800 |
| Max.capacity | 300 | 500 | 1200 | 1500 |
| Rated power(KW) | 250 | 250 | 350 | 480 |
| Ultimate temperature (℃) | 1800℃ |
| Temperature niformity (℃) | ≤±10℃ |
| Rated voltage (V) | 380V |
| Vacuum ultimate (Pa) | 10pa(vacuum state) |
| Control type | Manual control/automatic control |
| Vacuum system | Rotary vane vacuum pump or slide valve and Roots vacuum pump |
| Working environment | Vacuum, Ar2 and such inert gas |
Applications:
RUIDEER Silicon Carbide Furnace is a high-quality product designed for various applications in ceramic sintering processes. The furnace is available in different models such as 224, 4412, 5512, and 5518, providing flexibility to meet different production requirements. Manufactured in China, this furnace ensures reliable performance and durability.
With a vacuum level of 10^-3 Pa, the RUIDEER Silicon Carbide Furnace is suitable for sintering silicon carbide ceramics with precision and efficiency. Its double-layer steel casing with an air cooling system enhances thermal insulation and ensures temperature uniformity during the sintering process.
The furnace is available in different paint colors such as gray, blue, white, and green, allowing customers to choose based on their preferences or facility requirements. The use of forming agents like PEG, paraffin, and rubber further enhances the sintering process, ensuring high-quality output.
One of the key features of the RUIDEER Silicon Carbide Furnace is its wax collection rate of 98%, making it an efficient and environmentally friendly choice for ceramic sintering operations. Whether it's batch-type SiC sintering or stainless steel silicon carbide sintering, this furnace offers consistent and precise results.
Whether you are in the ceramics industry or research sector, the RUIDEER Silicon Carbide Furnace is ideal for a wide range of applications. Its robust construction, advanced features, and reliable performance make it a valuable asset for any sintering operation.

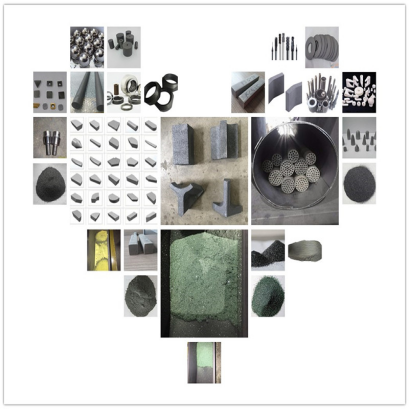

Producing work-piece sample:
Customization:
Product Customization Services for the Silicon Carbide Furnace:
Brand Name: RUIDEER
Model Number: 224/4412/5512/5518
Place of Origin: China
Furnace Structure: Double Layer Steel Casing With Air Cooling System
Wax Collection Rate: 98%
Extreme Vacuum Degree: 1Pa
Cooling Time: 0.3-12h
Temperature Range: Up To 1800°C
Keywords: Silicon carbide reaction sintering furnace, Ceramic substrate sintering furnace, SiC vacuum pressureless sintering furnace
Support and Services:
The Product Technical Support and Services for the Silicon Carbide Furnace product include:
- Installation assistance
- Troubleshooting guidance
- Maintenance recommendations
- Repair services
- Product training
Packing and Shipping:
Product Packaging:
The Silicon Carbide Furnace is carefully packaged to ensure safe delivery. It is placed in a sturdy wooden box. The packaging is designed to prevent any damage during transit and handling.
Shipping:
We ship the Silicon Carbide Furnace using a reliable courier service. The package is tracked to ensure timely delivery. Customers will receive a notification with tracking information once the product has been dispatched.
FAQ:
Q: What is the brand name of this Silicon Carbide Furnace?
A: The brand name of this Silicon Carbide Furnace is RUIDEER.
Q: What are the available model numbers for this Silicon Carbide Furnace?
A: The available model numbers for this Silicon Carbide Furnace are 224, 4412, 5512, and 5518.
Q: Where is this Silicon Carbide Furnace manufactured?
A: This Silicon Carbide Furnace is manufactured in China.
Q: What is the maximum temperature this Silicon Carbide Furnace can reach?
A: The maximum temperature this Silicon Carbide Furnace can reach is [provide actual temperature if available].
Q: Does this Silicon Carbide Furnace come with a warranty?
A: [Insert warranty information here if applicable]
